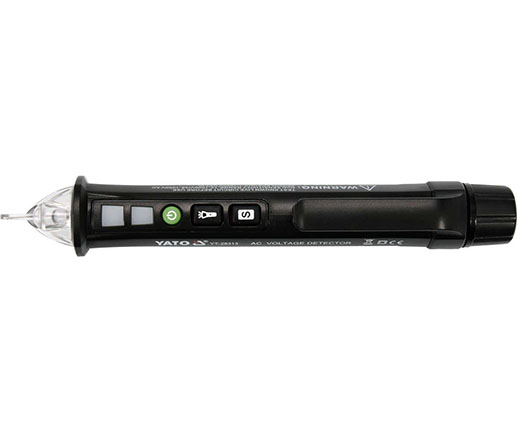

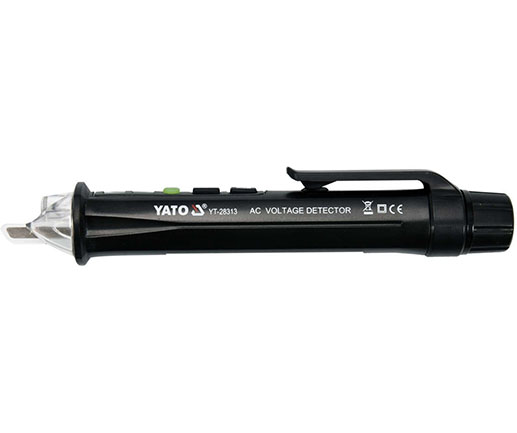

Yato's unique YT-28313 tester allows the detection of alternating voltage in electrical cables
in two ranges: 48-1000V and 12-1000V,
as well as detection of a break in the electric cable.
Eliminating direct tip contact with the insulated wire increases safety of use.
Voltage detection is signaled by an LED and an audible signal.
Features:
• Inductive AC voltage detection: 12 - 1000V
• Cable continuity test using the induction method
Characteristics :
• Total length: 155 mm.
• Two voltage detection areas.
• Sound and light signaling (LED diode).
• Work area lighting with an additional LED diode.
• Power supply: 2x1.5V; AAA
Induction Method :
The YT-28313 controller uses the phenomenon of electromagnetic induction.
When you bring the tip close to a wire that is under AC voltage
or close to the expected location of the cable on the wall,
the green LED will start flashing and an audible pulse will be emitted.
The higher the strength of the electromagnetic field, the higher the pulse frequency.
This method also allows "non-contact" detection of a break in a live electrical cable.
At the cut-off point, the tester will stop signaling the presence of voltage.
Press the button marked "S" to increase the sensitivity of the probe by extending its range.
